多軸ドリリング&タッピングセンター

効率的かつ正確な穴あけおよびタッピング作業のために設計された、当社のマルチスピンドル ドリリングおよびタッピング センターのご紹介です。この立型ボール盤は高度な機能を備えており、優れた技術サポートと 1 年間の保証を提供します。ベアリングシート、蛇口、スライドブロックの加工に最適です。

お問い合わせを送信

製品説明

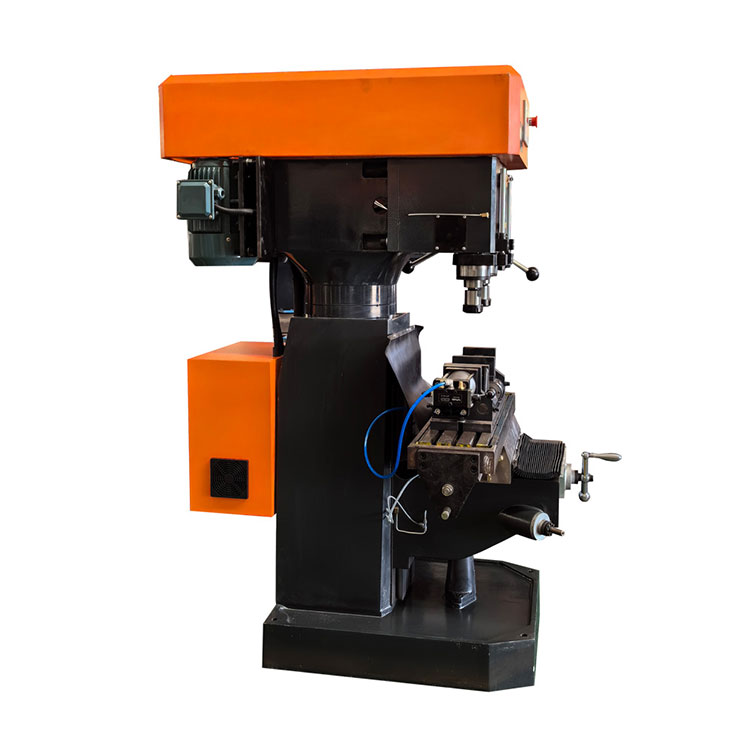

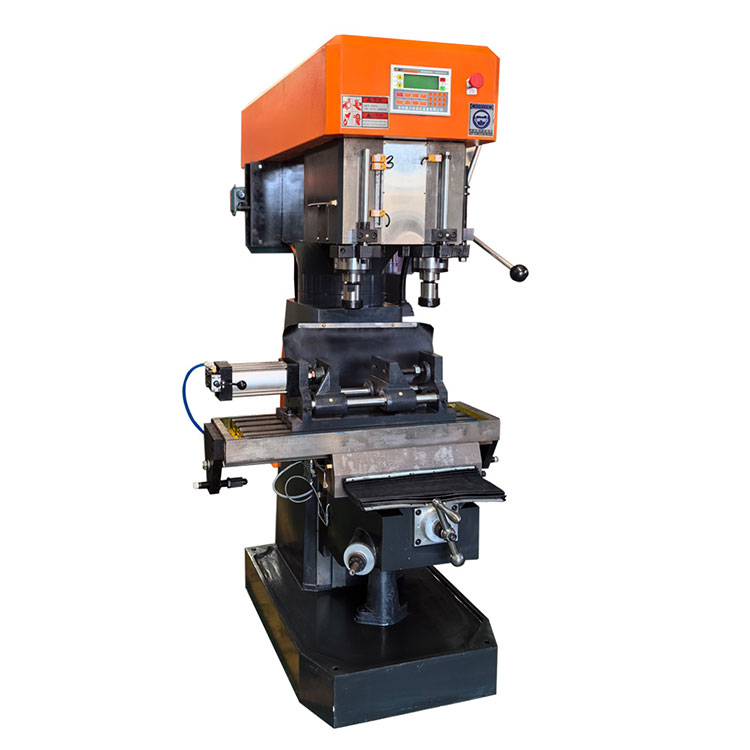

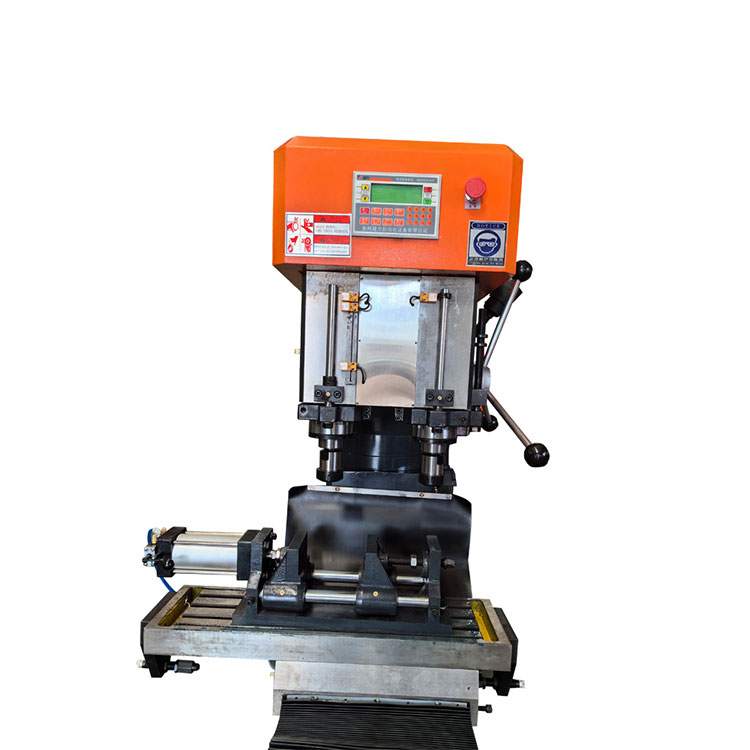

Multi-Spindle Drilling and Tapping Center


Machine configuration:



This series of manual machine tools consists of a base, a column, a lifting table, a saddle, a table, and a spindle unit.

●1 sliding sleeve type double spindle manual feed unit.

●1 pneumatic shift transmission table.

●1 pneumatic shift transmission saddle.

●PLC programmable controller, man-machine interface touch screen operating terminal



Mechanical parameter



Parameter name

unit



ZS4150×2

ZS4150×2A

ZS4150×2B

|ZS4150×2C

Spindle sleeve diameter

mm

90

Number of cutting spindle axes

/

2

Maximum hole diameter

mm

50

Maximum tapping diameter

mm

50

Spindle taper hole

#

MT4

Z1/Z2 spindle spacing

mm

240

Distance between spindle end face and work surface

mm

240~530

Table size

mm

800×230

Table travel X axis

mm

250

Saddle travel Y axis

mm

Manual operation120

Pneumatic210

Spindle travel (drilling/tapping)

mm

140/140

Manual, automatic tapping

/

Manual operation

Auto

Manual operation

Auto

Fastest moving speed on the X-axis

m/min           18

15

Borehole spindle speed

rpm

675/1013

Tapping spindle speed

rpm

345/518

Drilling motor model

/

YD132S-6/4-B3

Tapping motor model

/

YD132S-6/4-B3

Gross power

kw

8

Overall dimensions (L × W × H)

mm

1420×920×1800

Machine weight

kg

1250

1270

1300



Application field:



Used in valve, water heating sanitary ware, door control hardware, fire hydrant, auto parts and other processing, a wide range of applications, easy to operate, beautiful appearance, high cost performance.




1 Cast iron is reheated at high temperature and aged for more than six months.

2 Rigorous assembly process (rail assembly, lead screw assembly, bearing assembly, etc.).



3 Exquisite scraping technology (motor base scraping, spindle end scraper, column installation surface scraper



4, scientific production, the whole process of traceability of quality control.



our company:



Quanzhou Yueli Automation Equipment Co., Ltd was founded in 2013, which covers an area of 3000 square meters. The company is located at the China Plumb Town--Nanan, Fujian. It is a production enterprise lead by drilling tapping compound machine, drilling tapping centers and drilling tapping milling process center. The company is committed to serving various of industries such as sanitary ware, fire protection valves, hardware, electrical hardware, aerospace, machine manufacturing and so on.



Quanzhou Yueli Automation Equipment Co., Ltd has developed from a simple assembly manufacturing industry to be a machining manufacturer which collects research and development, production, sales and service. It owns CNC gantry rail grinder machine, boring mill, milling, digging, polishing compound machine and other advanced test equipment. Our company product is from sales, service network throughout the China domestic market. They are exported to foreign countries and regions.



We continue to innovate and strive for perfection in our products. We are specialized at quality, focus on the spirit, dedicated service to acquire the perennial support and profound affection from our customers.



In the future, we will continue to pay attention to the needs of users, constantly improve the professional level, the quality of science and technology. Win the market with the quality. We are willing to join hands in creating our brilliant future.





our service:


1. Reply your inquiry in 24 working hours.

2. Experienced staffs answer all your questions in fluent English.

3. Customized design is available. UEM&UBM are welcomed.

4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.

5. Special discount and protection of sales are provided to our distributor.

6. Professional factory : We are manufacturer, specializing in producing all kinds of machinery for more than 20 years, competitive with good quantity.

7.Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.

8.As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.
