アルミニウム合金ダイキャスティングマシン

ユエリは中国の製造業者兼サプライヤーであり、主に長年の経験を持つアルミニウム合金ダイキャスティングマシンを生産しています。あなたとのビジネス関係を築きたいと思っています。

お問い合わせを送信

製品説明

YueLi is a professional China Aluminum Alloy Die Casting Machine manufacturer and supplier, if you are looking for the Aluminum Alloy Die Casting Machine with low price, consult us now!

◆Aluminum alloy gravity casting castings and casting molds:

Aluminum Alloy Die Casting Machine

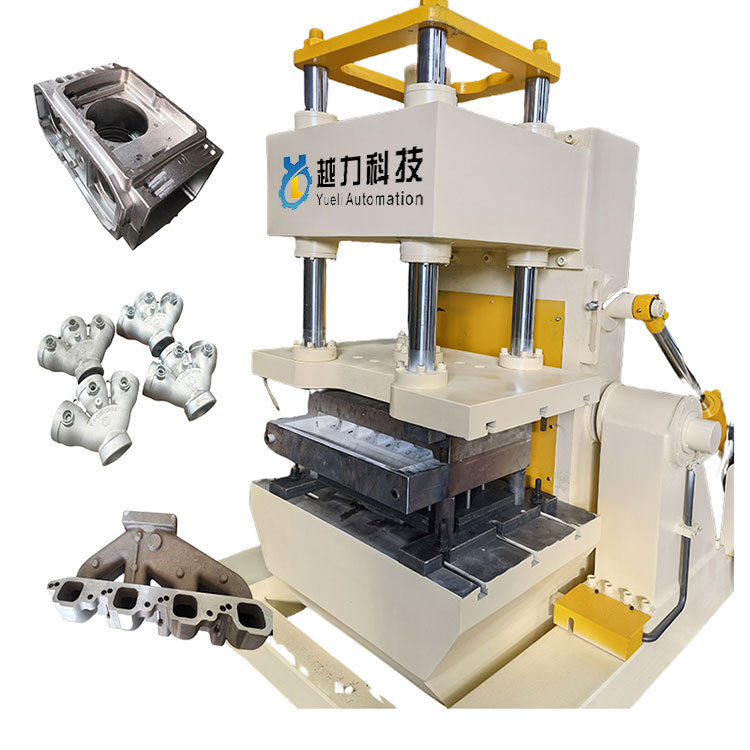

◆Equipment introduction【Aluminum alloy tilt casting machine. Precision C type】

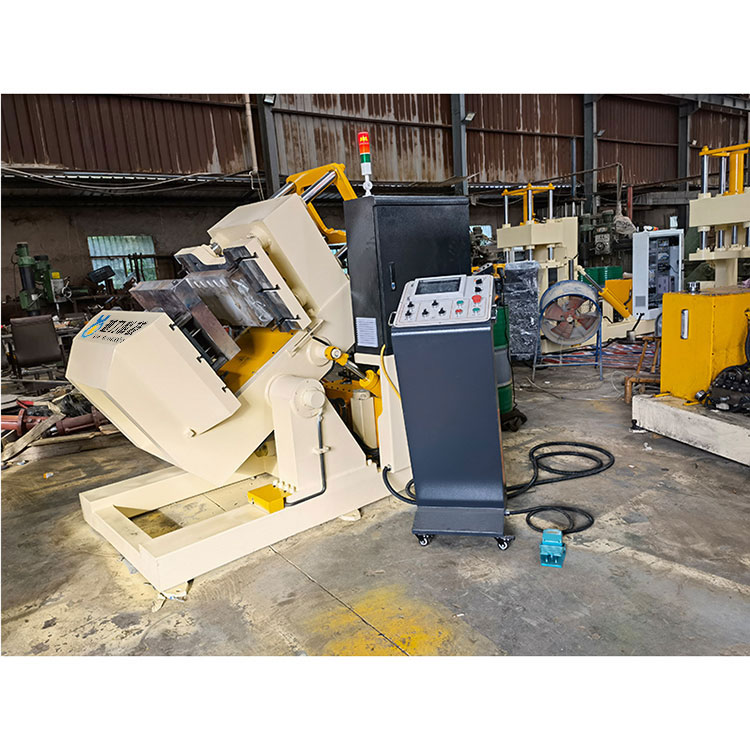

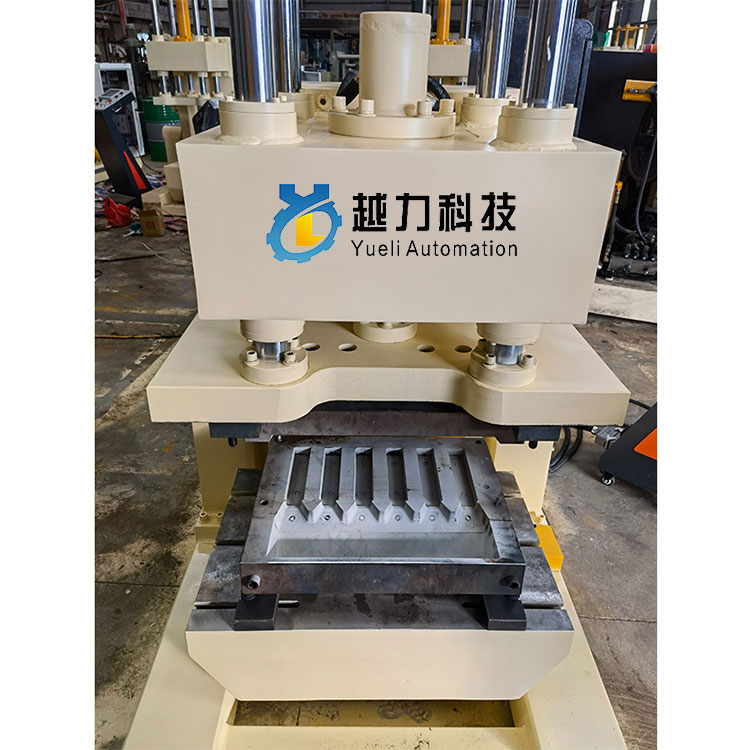

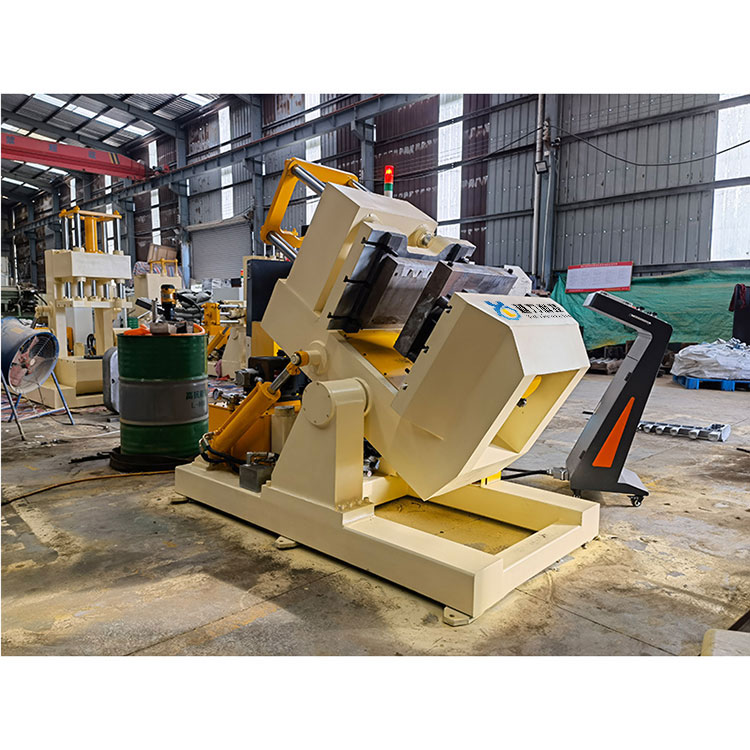

YL650 aluminum alloy tilt casting machine [Servo precision hydraulic system. Automatic pressure compensation. Intelligent casting. Intelligent pick-up]

It is suitable for gravity casting of aluminum alloy and zinc alloy products. The equipment is widely used in the casting production of accessories in hardware and sanitary ware, handicrafts, decorations, auto parts and other industries.

Aluminum Alloy Die Casting Machine

Serial Number	Disposition	Parameter
1	Maximum Die Size	600×500mm
2	Opening And Closing Die Stroke [Full Servo Hydraulic System. Automatic Replenishment	≤500mm
3	Minimum Closing Distance	200mm
4	Maximum Distance Of Mold Opening	700mm
5	Top Core-Pulling Stroke	≤50mm
6	Rear Core-Pulling Stroke	≤100mm
7	Lower Core-Pulling Stroke	≤50mm
8	Maximum Clamping Force	50KN
9	Maximum Opening Force	55KN
10	Table Tilt Angle	0-90 度
11	Hydraulic System Working Pressure	4.5Mpa
12	Jacking Cylinder Output	25KN
13	Rated Power Of Hydraulic Station	3.75KW
14	Machine Dimensions	2500×1600×1500mm

◆Main equipment technical parameters

Aluminum Alloy Die Casting Machine

◆Device Configuration

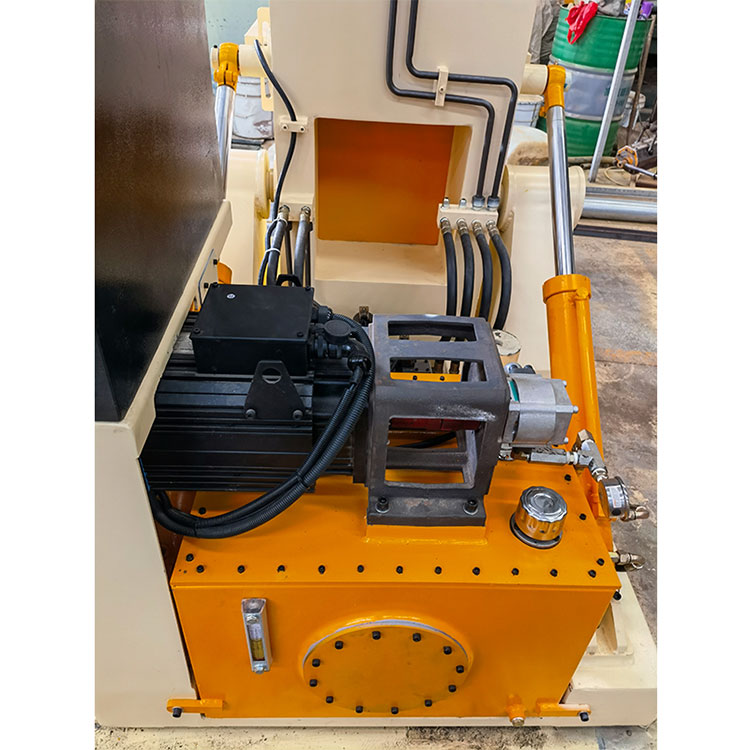

① Hydraulic system: Taiwanese brand servo precision hydraulic system [high-end configuration with automatic pressure compensation] and hydraulic accessories.

② Electrical control system: Snyder low-voltage electrical appliances. Omron proximity switches. Siemens buttons. Taiwan Mingwei power switches.

Aluminum Alloy Die Casting Machine
