Quanzhou Yueli Automation Equipment Co., Ltd. was founded in 2013 and is located in Nan'an, Fujian, the hometown of water heating in China. The company specializes in the production and processing of chamfering machines, drill bit grinders, milling cutter grinders, pneumatic tapping machines, electric tapping machines, and other products, and has a complete and scientific quality management system. The integrity, strength, and product quality of Yueli Automation Equipment Co., Ltd. have been recognized by the industry. Welcome friends from all walks of life to visit, guide, and negotiate business. Our company has always been committed to the integration of technology, service, and humanity, adhering to the principle of "customer first". We will continue to work tirelessly to gain the love of more customers, and sincerely hope that users from all walks of life can provide more support and assistance. We constantly innovate and strive for excellence in our products. By providing easy-to-use, economical, stable, and high-quality products to society and serving users, we have also won the trust and good reputation of a large number of people. We are willing to work together with colleagues from all walks of life to devote ourselves to the exploration and development of automated mechanical equipment! We place more emphasis on practicality and after-sales service in our products. Our technical personnel go directly to the front line to improve the shortcomings of the products, strive for excellence, and win the market with quality. Customer satisfaction is always our unremitting pursuit! In the future, we will continue to pay attention to user needs and are willing to work together to create brilliance!

ChamferingMfach ine      Drill Grinder

Milling Cuter Grinder      Tapping Ma chine

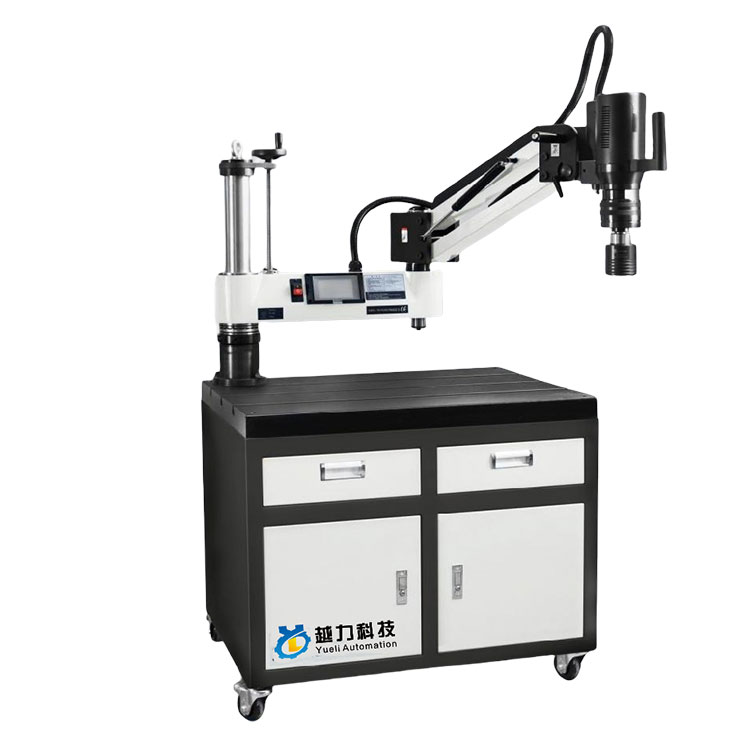

Electric Tapping Machine Lifting Model

YL-M48/M48S

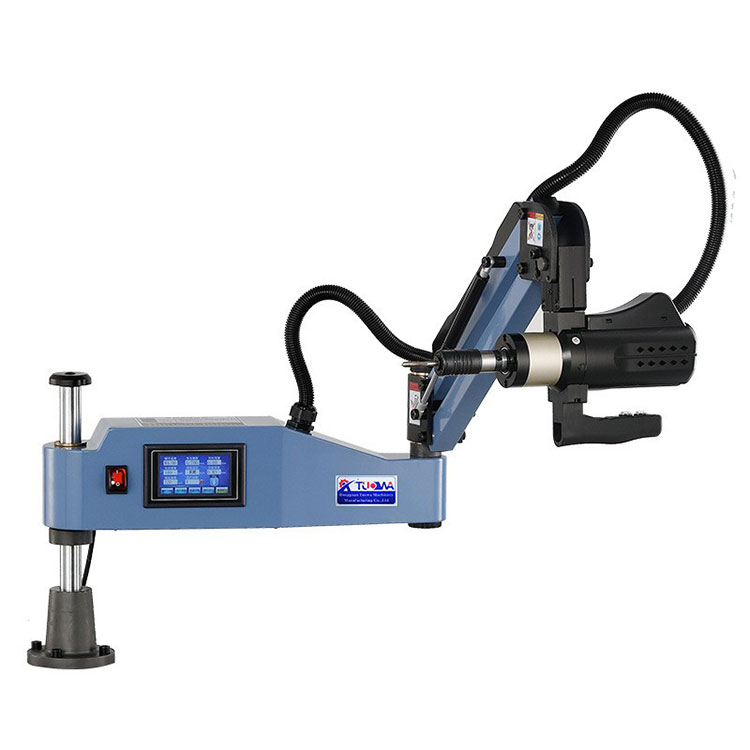

Servo electric tapping machine (also known as: tapping machine, tapping machine, electric tapping machine, electric tapping machine)

Servo electric tapping machine: light, flexible, efficient and has other similar equipment can not replace the advantages. The new servo electric tapping machine has the functions of intelligent depth determination and free adjustment of torque. Avoid the limitations of lathes, drilling machines or manual tapping, saving time, labor, not easy to rot teeth, tap is not easy to break and so on.

STANDARD ACCESSORIES

Base,Upper And Lower Support Arms,Servo Motor,ReducerC/M16C

                           Tap Holder TC820/TC1433                                                                    Manual,Power Cord,Base Screw

FUNCTION

1. Manual  Tapping  Mode

2.Automatic  Tapping  Mode

3.Deep  Hole  Machining  Mode

4.Workpiece  Storage  Function

5.Universal  Horizontal  Tapping

6.External Thread  Die  Tapping

7.Chamfer   Function

8.Tap Extension Rod Tapping

9.Screw  Mode

OPTIONAL  ACCESSORIES

REDUCER DIFFERENCE

Single Speed Reducer/ Double Speed Adjusting Reducer

MAIN  PARAMETER

Field of application

Servo electric tapping machine suitable for workpiece materials: can be in lead, copper, A3 steel, cast iron, pig iron, stainless steel, Q235, 45 steel, S136 die steel, 718 die steel, ace material, NAK80 die steel and other metal materials to achieve easy tapping operation.

Servo electric tapping machine application field:

Applicable to all machinery manufacturing industries, machine tools, mold machinery, plastic machinery, printing machinery, packaging machinery manufacturers, engineering machinery, automobile and motorcycle parts, aviation engines, rolling stock, tobacco machinery and general machinery and other industries.

Servo electric tapping machine main configuration: servo motor (OKERS), servo drive system, high-definition human-machine interface, precision planetary reducer, high precision bearing bracket, high strength fixed seat, safety torque protection chuck, an electric box, a special wrench for the chuck, a power line,

Product advantage: This machine has the technical advantage of surpassing similar products

1, microcomputer control, motor output torque size automatically set, blind hole continuous tap: according to the size of the tap set motor output torque, plus torque chuck overload protection, double protection, continuous tap;

2, intelligent depth, automatic attack, automatic return. Both manual mode standard tooth automatic mode non-standard tooth automatic mode three tapping modes free switching, simple operation, intelligent, humanized.

(1) Manual mode: two buttons can achieve fast tapping;

(2) Standard tooth automatic mode: Only need to know that the tap is M to achieve automatic control depth, leading peer technology.

(3) Automatic mode of non-standard teeth: All types of taps can automatically control the depth as long as the tooth spacing is known.

3, you can attack in the end and then exit, you can also attack a few circles to retreat a few circles and then attack and then retreat repeated mode.

4, high efficiency, continuous use of barrier-free, one to several ordinary tapping machine;

5, precision planetary reducer Taiwan factory order, gear than the standard parts on the market increase, lengthen, increase, durable, high precision.

6. High precision, thick and strong support;

7. Large range of work activities, heavy workpieces do not need to move;

8, stable performance, continuous use of barrier-free;

9, after the sale of guaranteed products free warranty for 12 months. The after-sale department has a 7-day working system to solve problems at the fastest speed and minimize the loss of lost work of customers.

Company profile

Quanzhou Yue Li Automation Equipment Co., Ltd. was founded in 2013, the company is located in China's water heating town - Nan 'an, Fujian Province to chamfer machine, drill grinding machine, milling cutter grinding machine, pneumatic tapping machine, electric tapping machine and other products professional production and processing company, has a complete and scientific quality management system. Yue Li Automation Equipment Co., Ltd. integrity, strength and product quality recognized by the industry. Welcome friends from all walks of life to visit, guidance and business negotiations. The company has been committed to the "integration of technology, service and humanity", uphold the principle of "customer first". And will be more unremitting efforts, in exchange for more customers love, sincerely hope that users from all walks of life more support and help. We are constantly innovating and improving on our products. With easy to operate, economic, stable, high-quality products to return to the society, service users, but also won the majority of trust and good reputation. We are willing to work with colleagues from all walks of life to commit to the exploration of automation machinery and equipment! We pay more attention to practical products, pay attention to after-sales, technical personnel directly to the front line, improve the shortcomings of the product, excellence, quality to win the market. Customer satisfaction is always our unremitting pursuit! In the future, we will continue to pay attention to the needs of users, willing to work together to create brilliant!
